Oil-Free Vacuum. Maximum Reliability

Dry Screw Vacuum Pump

The SWAM SVP Series represents our next-generation Variable Pitch Dry Screw Vacuum Technology— delivering clean and dependable vacuum solutions trusted across industries worldwide.

Up To 2,500
M³/Hr Capacity
Max 0.01
Torr Vacuum
Oil-Free
Operation
Our Products

Dry Screw Vacuum Pump - Combined Variable Pitch Technology

Key Features

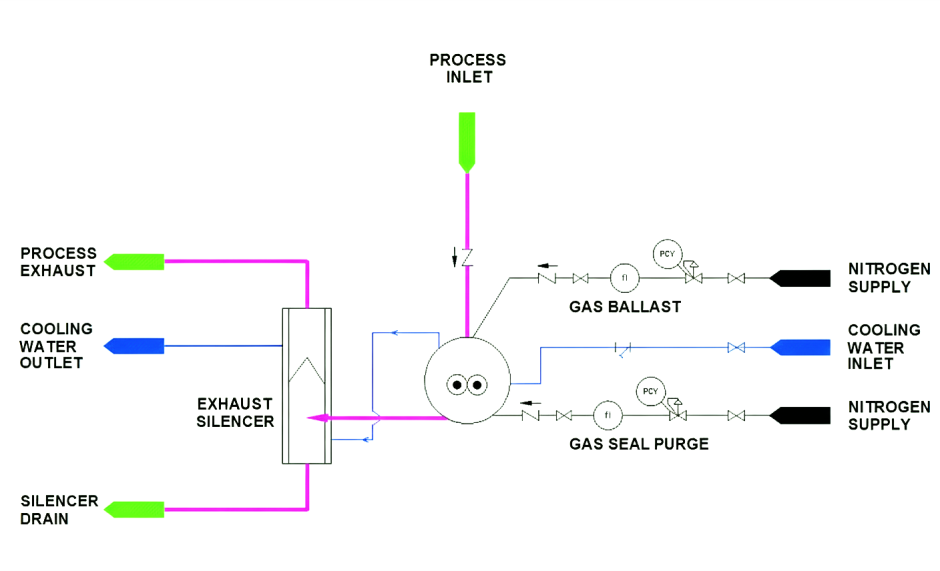

Dry Screw Pump Components
🛢️

Oil-Free Operation

Clean operation without oil contamination.

🌫️

High Vapor Tolerance

Handles vapor efficiently with no performance loss.

❄️

Efficient Cooling

Maintains optimal operating temperature.

🔋

Energy Saving

Low power consumption with high efficiency.

📐

Compact Design

Space-saving design with versatile applications.

🔒

Reliable Seal

Enhanced leak tightness with optimum gas purge.

🛠️

Gas Ballast Nozzle

Prevents condensation of corrosive vapor.

💧

Coolant Jacket

Prevents oil leakage under temperature/pressure.

Working Principle & Technology

Understanding the combined variable pitch screw technology that delivers oil-free, contamination-free vacuum with superior performance

Variable Pitch Screw Technology

Dry Screw Vacuum Technology

The combined variable pitch screw rotors create vacuum through positive displacement action. The screws mesh together with precise clearances, trapping and moving gas from inlet to outlet, achieving deep vacuum without oil contamination.

1

Gas Intake

Process gas enters through the inlet port as screws create vacuum

2

Compression

Variable pitch screws compress gas progressively with no oil contact

3

Exhaust

Compressed gas discharged with immediate solvent recovery capability

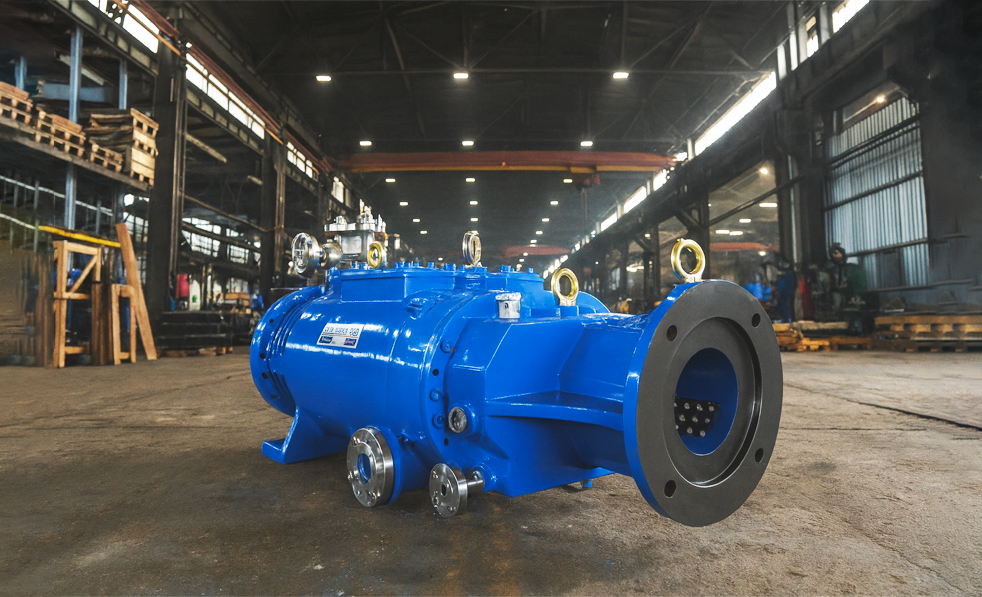

Dry Screw Vacuum Pump Working Principle

Oil-Free Operation

Complete oil-free design ensures no contamination of process stream with zero effluent and no pollution

Contamination:Zero
Effluent:None

Deep Vacuum Performance

Achieves ultimate vacuum Max 0.01 Torr with consistent performance regardless of seasonal variations

0.01 Torr ultimate vacuum
Season-independent operation

Immediate Solvent Recovery

Direct solvent recovery at pump exhaust for immediate reuse, reducing operational costs and improving efficiency

Immediate recovery
Cost reduction

Lower Maintenance Costs

Advanced design with fewer moving parts and oil-free operation significantly reduces maintenance requirements and costs

Reduced maintenance
Lower operating costs

Available Models:

Explore our range of dry screw vacuum pumps designed for efficiency, durability, and performance in industrial applications.

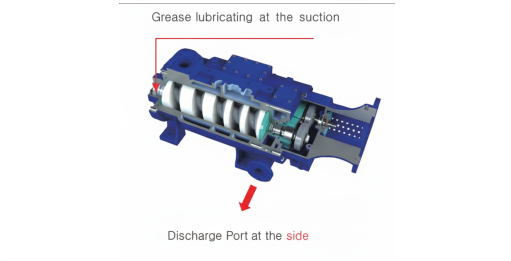

Dry Screw Vacuum Pump - Top

SVP – 160

  • Capacity: 110/130 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 3.7 kW

SVP – 310

  • Capacity: 250/300 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 7.5 kW

SVP – 410

  • Capacity: 330/400 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 11 kW

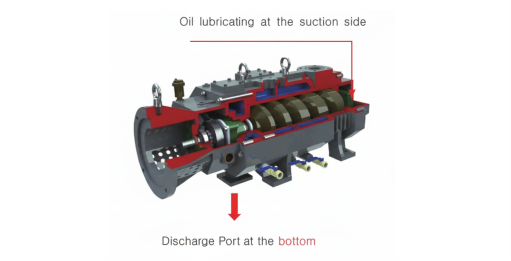

Dry Screw Vacuum Pump - Bottom

SVP ‐ 810

  • Capacity: 660/800 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 15 kW

SVP ‐ 1600

  • Capacity: 1250/1500 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 37 kW

SVP ‐ 3100

  • Capacity: 2500 m³/h
  • Ultimate Pressure: <0.1 mbar
  • Motor Power: 55 kW

Benefits & Advantages

🛡️

No Contamination

No contamination of process steam ensures product purity.

Deeper Vacuum

Deeper vacuum and more flexible operation for multiple applications.

🌍

Eco-Friendly

No effluent, no pollution, and no waste disposal costs.

🔧

Lower Maintenance

Reduced maintenance costs due to robust and simple design.

💨

Immediate Solvent Recovery

Direct solvent recovery at pump exhaust for higher efficiency.

💰

Lower Ownership Cost

Lower total cost of ownership with reduced utility costs.

📈

Stable Vacuum

No variation in vacuum regardless of changing seasons and utility.

Industrial Applications

Oil-free vacuum solutions for demanding applications requiring contamination-free environments and deep vacuum performance

⚗️

Chemicals

💊

Pharmaceutical

🍕

Food Processing

🔬

Semiconductor

🔧

Plastics & Polymers

🔬

Research & Laboratory

Chemicals
⚗️Chemicals
Organic Chemical Plants
Petrochemical Plants
Fine Chemical Plants
Polymer
Inorganic Chemicals

Ready for Oil-Free Vacuum Technology?

Connect with our engineering experts to discover how Dry Screw Vacuum Pumps can enhance your processes with contamination-free operation, deeper vacuum capability, and immediate solvent recovery.
