Mechanical Vacuum Boosters
SWAM Mechanical Vacuum Boosters work in combination with conventional vacuum pumps to boost high vacuum up to one micron. Featuring state-of-the-art design with advanced sealing systems for complete vacuum tightness and leak-proof construction.
Salient Features of the Boosters
Key advantages that make our mechanical vacuum boosters reliable for high-vacuum duty
Compact & Robust
Compact design, robust construction, suitable for continuous duty.
Works with Any Backing Pump
Can be used with all types of backing pumps.
Flexible Flow
Flexible choice of flows — horizontal or vertical.
Wide Capacity Range
Large number of models, capacities from ~150 to 52,000 m³/hr.
Drive Compatibility
Couples to flanged motor, V-belt drive, or gear box drive.
Quality & Reliability
High quality and reliable operation.
Advanced Sealing
Unique sealing system ideally suited for high-vacuum applications.
Working Principle & Technology
Understanding mechanical vacuum booster technology that combines with backing pumps to achieve ultra-high vacuum levels for demanding industrial applications
Mechanical Vacuum Booster Technology
Mechanical vacuum boosters work in combination with conventional vacuum pumps to boost high vacuum levels. The state-of-the-art design features unique sealing systems ensuring complete vacuum tightness and leak-proof construction for reliable operation.
Primary Vacuum Creation
Backing pump creates initial vacuum while booster operates at low inlet pressure
Vacuum Amplification
Mechanical booster amplifies vacuum level through high-speed rotor operation
Enhanced Performance
Combined system achieves ultra-high vacuum from 50 Torr to one micron
Advanced Sealing System
Highly reliable sealing with piston ring type labyrinth seals, rotary seals between chambers, and neutral chamber design for complete vacuum tightness
Wide Capacity Range
Available in different models with capacity ranging from 500 M³/Hr to 80,000 M³/Hr to suit various industrial applications and requirements
Flexible Drive Configuration
Drive arrangements include direct coupled or V-belt options with splash oil lubrication system for reliable operation under various conditions
Material Options
Standard construction from high quality cast iron inoculated for vacuum duty. Optional stainless steel, ductile iron with special coatings available

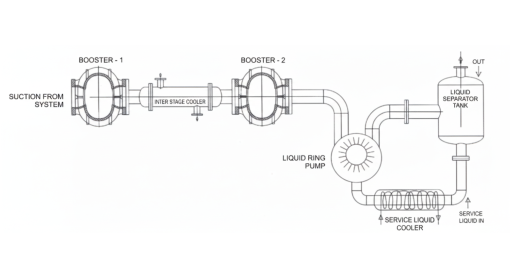

Construction
Explore the internal construction of our Mechanical Vacuum Boosters, engineered with precision for maximum efficiency and durability.
Performance & Operating Range
Industrial Applications
Ultra-high vacuum solutions for precision applications requiring exceptional vacuum levels and reliable performance across diverse industrial sectors
Chemical & Process Technology
Pharmaceutical Manufacturing
Semiconductor Processing
Research Laboratories
Metallurgical Plants,Lamp & Tube Industries
Food Preservation & packing
Ready for Ultra-High Vacuum Solutions?
Connect with our engineering experts to discover how Mechanical Vacuum Boosters can enhance your processes with ultra-high vacuum performance, reliable operation, and advanced sealing technology.
