Sealed for Performance, Built for Endurance

Oil Vane Vacuum Pump

SWAM Oil Vane Vacuum Pumps combine proven vane technology with precision engineering to deliver stable, consistent vacuum in compact, quiet, and reliable designs. From direct-drive to chemical-resistant series, these pumps ensure dependable performance for everyday industrial and laboratory operations.

Up To 600
M³/hr Flow
Max 0.01
Torr Vacuum
Oil
Lubricated
Chemical
Series
Our Products

Oil Vane Vacuum Pump - Rotary Vane Technology
Rotary Vane
Oil Lubricated
Chemical Series

Key Features

🌪️

High Ultimate Vacuum

Delivers strong and consistent vacuum performance.

❄️

Superior Heat Dissipation

Efficient cooling system prevents overheating.

🔇

Low Noise & Vibration

Ensures quiet and stable operation.

⚡

Compact & Continuous Duty

Space-saving design with nonstop operation.

🛡️

Wear-Resistant & Long Life

Durable construction ensures long service life.

Working Principle & Technology

Understanding the rotary vane technology with oil lubrication that delivers reliable vacuum performance with effective condensable vapor handling capability

Rotary Vane Technology

Rotary Vane Vacuum Technology

Oil-lubricated rotary vane vacuum pumps operate through positive displacement action. An eccentrically mounted rotor with sliding vanes rotates in a cylindrical housing, creating variable chamber volumes that compress and evacuate gas effectively.

1

Rotor Rotation

Eccentric rotor with sliding vanes rotates in cylindrical housing creating variable chambers

2

Volume Variation

Sliding vanes move in slots separating working chambers with changing volumes

3

Gas Compression

Positive displacement action compresses and evacuates gas achieving high vacuum levels

Oil Vane Vacuum Pump Working Principle

Oil Lubrication System

Oil lubrication ensures smooth operation, effective sealing, and extended equipment life for reliable vacuum performance

Lubrication:Oil Based
Operation:Continuous

High Flow Capacity

Readily available for flows up to 600 M³/hr with consistent performance across the entire operating range

600 M³/hr capacity
Consistent performance

High Vacuum Performance

Achieves vacuum Max 0.01 Torr at suction port with consistent performance for demanding applications

0.01 Torr vacuum capability
Consistent performance

Chemical Series Design

Specially designed to handle higher amounts of condensable vapor without compromising vacuum levels or equipment performance

Condensable vapor handling
Chemical process ready

Reliable Operation

Proven rotary vane technology with positive displacement action provides dependable vacuum performance across various applications

Positive displacement
Proven technology

Available Models (by Series)

Browse each series below. Swipe cards to view all models and specs.

Air Cooled — Single Stage (SP-OL)

SP 20 OL
  • Capacity20 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.1 HP
SP 25 OL
  • Capacity25 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.1 HP
SP 30 OL
  • Capacity30 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.1.5 HP
SP 40 OL
  • Capacity40 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.2 HP
SP 65 OL
  • Capacity65 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.2 HP
SP 100 OL
  • Capacity100 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.3 HP
SP 150 OL
  • Capacity150 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.5 HP
SP 200 OL
  • Capacity200 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.7.5 HP
SP 300 OL
  • Capacity300 m³/hr
  • Vacuum0.5 mbar
  • Motor H.P.10 HP

Air Cooled — Double Stage (SP-DD)

SP 200 DD
  • Pumping Capacity200 LPM
  • Oil Capacity1 L
  • Motor H.P.0.75 HP
SP 350 DD
  • Pumping Capacity350 LPM
  • Oil Capacity2.5 L
  • Motor H.P.1 HP
SP 600 DD
  • Pumping Capacity600 LPM
  • Oil Capacity2.5 L
  • Motor H.P.1.5 HP
SP 1000 DD
  • Pumping Capacity1000 LPM
  • Oil Capacity3.5 L
  • Motor H.P.2 HP

Air Cooled — Single/Double Stage (SP-S / SP-D)

SP 200 S
  • Pumping Capacity200 LPM
  • Oil Capacity3 L
  • Motor H.P.0.5 HP
SP 200 D
  • Pumping Capacity200 LPM
  • Oil Capacity3.5 L
  • Motor H.P.1 HP
SP 21 S
  • Pumping Capacity350 LPM
  • Oil Capacity3.5 L
  • Motor H.P.1 HP
SP 21 D
  • Pumping Capacity350 LPM
  • Oil Capacity3.5 L
  • Motor H.P.1 HP
SP 600 D
  • Pumping Capacity600 LPM
  • Oil Capacity5 L
  • Motor H.P.1.5 HP
SP 1000 D
  • Pumping Capacity1000 LPM
  • Oil Capacity6 L
  • Motor H.P.2 HP

Water Cooled — Double Stage (SP-D)

SP 1500 D
  • Pumping Capacity1500 LPM
  • Oil Capacity8 L
  • Motor H.P.3 HP
SP 2500 D
  • Pumping Capacity2500 LPM
  • Oil Capacity16 L
  • Motor H.P.5 HP
SP 3500 D
  • Pumping Capacity3500 LPM
  • Oil Capacity20 L
  • Motor H.P.7.5 HP
SP 5000 D
  • Pumping Capacity5000 LPM
  • Oil Capacity26 L
  • Motor H.P.10 HP
SP 7500 D
  • Pumping Capacity7500 LPM
  • Oil Capacity31 L
  • Motor H.P.12.5 HP

Industrial Applications

Versatile vacuum solutions for diverse industrial applications requiring reliable performance and effective condensable vapor handling

⚗️

Vacuum Distillation

🔍

Filtration

💎

Jewelry Casting

🌡️

Vacuum Drying

💨

Degassing

🍕

Food Processing

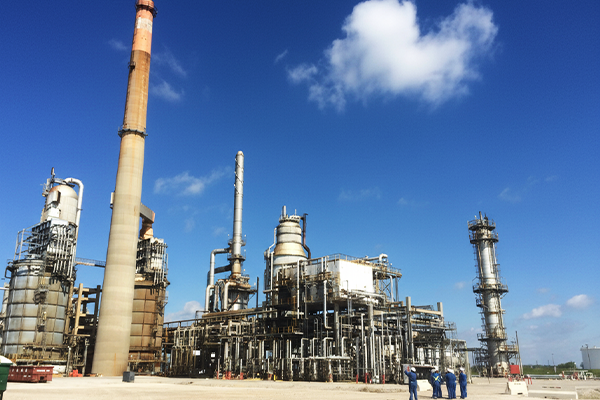

Vacuum Distillation
⚗️Vacuum Distillation
Precise vacuum control
Condensable vapor handling
Process efficiency

Ready for Reliable Vacuum Technology?

Connect with our engineering experts to discover how Oil Vane Vacuum Pumps can enhance your processes with reliable performance, effective condensable vapor handling, and proven rotary vane technology for demanding applications.
