Tri-Lobe Rotary Blowers
SWAM Tri Lobe Blowers are designed for high efficiency, low noise, and reliable performance in continuous operations. With precision engineering and robust construction, they deliver consistent airflow for applications ranging from wastewater treatment and pneumatic conveying to industrial processing. Built to last, our Tri Lobe Blowers ensure durability, energy savings, and optimal performance across demanding industries.
Advanced Technology Features
Discover the cutting-edge innovations and precision engineering that make our rotary blowers the most reliable and efficient solutions in the industry
Tri-Lobe Rotor Design
Minimizes pulsations and vibration for smooth, consistent airflow.
Heavy-Duty Bearings & Sealing
Extended life even under continuous 24/7 duty.
Energy-Efficient Profile
Optimized lobe geometry reduces power consumption.
Wide Pressure & Flow Range
Suitable for applications from aeration to pneumatic conveying.
Temperature Control
Efficient cooling with built-in air passages lowers discharge temperatures.
Versatile Mounting
Available in vertical and horizontal configurations to match installation needs.

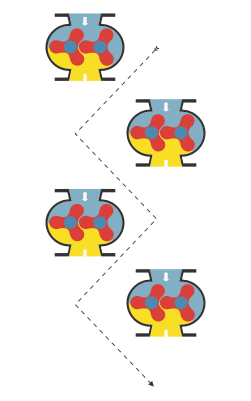

Working Principle – Tri Lobe Blower
Tri-Lobe Blower
The working principle of Tri-lobe blowers is similar to that of Twin-lobe type. The rotors move opposite each other, maintaining fine clearances, in perfect synchronization through a set of precision timing gears.
As the rotation proceeds, the trapped gas moves along until it reaches the discharge port, raising its pressure against the system resistance. The precise clearances within the blower make possible the rise in pressure with least internal slip loss.
Non-pulsating
Lower sound emission
Smooth

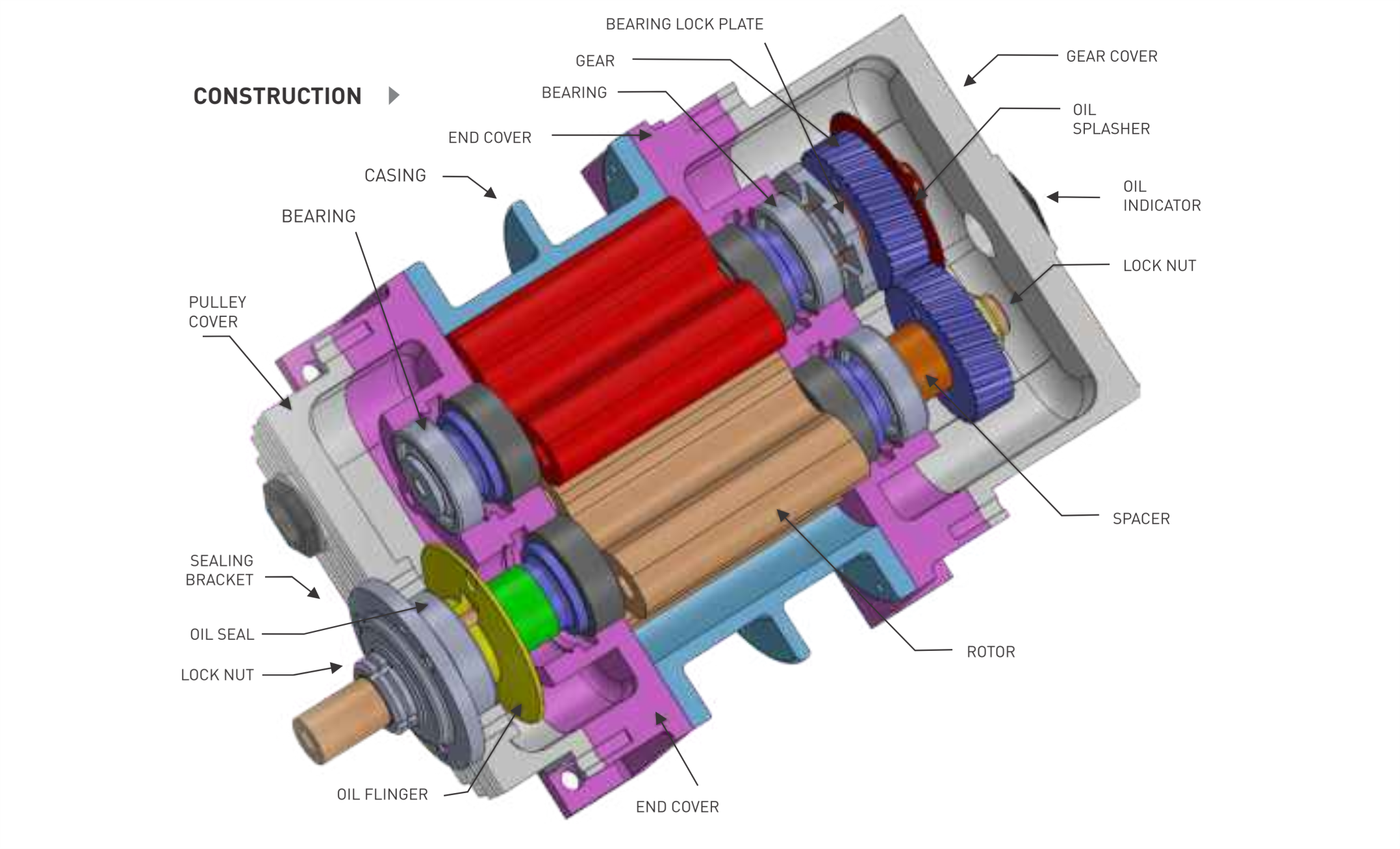

Construction
Explore the internal construction of our Rotary Twin Lobe Blowers, engineered with precision for maximum efficiency and durability.
Standard Execution
- Common skid for blower and motor.
- V-belts and pulleys of flexible coupling.
- Pressure gauge with isolation valve.
- Suction and discharge silencers
Optional Accessories
- Blow off control valve with silencer.
- Pressurized lubrication.
- Variable frequency drive.
- Water injection system.
Industrial Applications
Powering diverse industries with reliable, efficient solutions
Wastewater Treatment
Chemical & Petrochemicals
Power Plants
Cement & Lime Industry
Aquaculture
Sugar Industry
Ready to Experience Excellence?
Connect with our technical experts to find the perfect rotary blower solution for your specific requirements. Join thousands of satisfied customers who trust SWAM for their industrial air movement needs.
